How does a pipe jacking machine work in industrial projects?

2025-04-17 06:17:44

Pipe jacking is a trenchless construction method used to install underground pipelines, tunnels, or conduits with minimal surface disruption. This technique is particularly useful in urban areas, where opencut excavation would be impractical or disruptive to traffic, utilities, and the environment. A pipe jacking machine (PJM) is the core equipment used in this process, enabling the installation of pipes with precision and efficiency. Here’s an indepth look at how a pipe jacking machine works in industrial projects.

1. Overview of Pipe Jacking

Pipe jacking involves the installation of prefabricated pipes or segments into the ground by pushing them through the soil using hydraulic jacks. The process begins with the excavation of a launch shaft (entry pit) and a reception shaft (exit pit). The pipe jacking machine is positioned in the launch shaft and used to bore through the ground while simultaneously installing the pipes behind it.

The key components of a pipe jacking system include:

 Pipe Jacking Machine (PJM): The machine that excavates the soil and advances the pipes.

 Hydraulic Jacks: Provide the force to push the pipes forward.

 Prefabricated Pipes: Installed behind the machine as it progresses.

 Control System: Monitors and adjusts the machine’s operation.

 Lubrication System: Reduces friction between the pipes and the surrounding soil.

2. Working Principles of a Pipe Jacking Machine

The operation of a pipe jacking machine can be broken down into several stages:

a. Preparation

Before the pipe jacking process begins, the site is prepared by excavating the launch and reception shafts. The launch shaft is where the pipe jacking machine is assembled and positioned, while the reception shaft serves as the endpoint for the pipeline installation. The shafts are typically reinforced to ensure stability during the operation.

b. Machine Setup

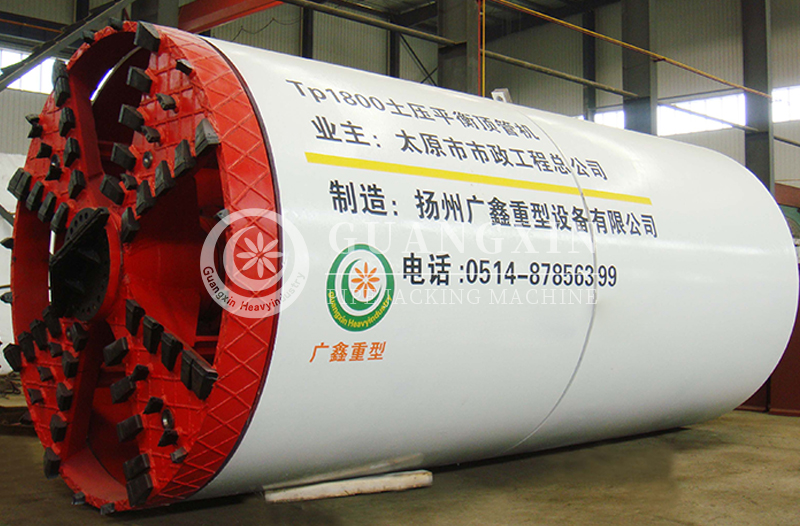

The pipe jacking machine is lowered into the launch shaft and aligned with the intended pipeline route. The machine is equipped with a cutting head or shield at the front, which is designed to excavate the soil. The type of cutting head used depends on the ground conditions, such as soft soil, hard rock, or mixed ground.

c. Excavation

Once the machine is in position, it begins to excavate the soil. The cutting head rotates and removes the soil, which is then transported out of the tunnel using a conveyor system or slurry removal system. The machine’s cutting head is designed to maintain the stability of the tunnel face, preventing collapses or subsidence.

d. Pipe Installation

As the machine advances, prefabricated pipes are installed behind it. The pipes are pushed forward by hydraulic jacks, which are mounted on a thrust wall in the launch shaft. The jacks apply a continuous force to the pipes, ensuring they move forward in alignment with the machine.

e. Lubrication

To reduce friction between the pipes and the surrounding soil, a lubrication system is used. Bentonite slurry or other lubricants are injected around the pipes, making it easier to push them through the ground. This also helps to stabilize the soil and prevent ground movement.

f. Monitoring and Control

The entire process is monitored and controlled using a sophisticated system that tracks the machine’s position, alignment, and performance. Sensors and cameras provide realtime data, allowing operators to make adjustments as needed to ensure accuracy and safety.

g. Completion

Once the pipe jacking machine reaches the reception shaft, the operation is complete. The machine is disassembled and removed, and the pipeline is inspected and tested to ensure it meets the required standards.

3. Types of Pipe Jacking Machines

Pipe jacking machines are designed to handle different ground conditions and project requirements. Some common types include:

a. OpenFace Machines

These machines are used in stable ground conditions, such as clay or soft soil. They have an open cutting face that allows operators to see and control the excavation process.

b. Slurry Machines

Slurry machines are used in unstable or waterlogged ground conditions. They use a slurry mixture to support the tunnel face and transport excavated material out of the tunnel.

c. Earth Pressure Balance Machines (EPBMs)

EPBMs are designed for mixed ground conditions, where both soft soil and hard rock may be encountered. They use the excavated material to balance the pressure at the tunnel face, ensuring stability.

d. Microtunneling Machines

These are smaller machines used for installing pipelines with diameters of less than 1 meter. They are highly precise and often used for utility installations.

4. Advantages of Pipe Jacking

Pipe jacking offers several benefits in industrial projects:

 Minimal Surface Disruption: Since the process is trenchless, it avoids the need for extensive excavation, reducing disruption to traffic, utilities, and the environment.

 High Precision: The use of advanced control systems ensures accurate alignment and installation of the pipeline.

 Versatility: Pipe jacking can be used in a wide range of ground conditions, from soft soil to hard rock.

 Safety: The process minimizes the risk of ground collapse and other hazards associated with opencut excavation.

 CostEffective: In many cases, pipe jacking is more economical than traditional methods, especially in urban areas.

5. Applications of Pipe Jacking

Pipe jacking is widely used in various industrial and infrastructure projects, including:

 Sewer and Water Pipelines: Installing or rehabilitating underground pipelines for water supply and wastewater management.

 Utility Tunnels: Creating tunnels for electrical, telecommunications, or gas lines.

 Transportation Tunnels: Constructing tunnels for roads, railways, or pedestrian pathways.

 Culverts and Drainage Systems: Installing culverts and drainage systems to manage stormwater.

6. Challenges and Considerations

While pipe jacking is a highly effective method, it does come with some challenges:

 Ground Conditions: The success of the process depends on the stability and composition of the soil. Unforeseen ground conditions can lead to delays or complications.

 Machine Size: The size of the pipe jacking machine may limit its use in confined spaces or for smalldiameter pipelines.

 Cost of Equipment: Pipe jacking machines and associated systems can be expensive to purchase and maintain.

 Skilled Operators: The process requires skilled operators and technicians to ensure smooth and safe operation.

7. Conclusion

Pipe jacking machines play a critical role in modern industrial projects, offering a trenchless solution for installing underground pipelines and tunnels. By combining advanced technology with efficient excavation and installation methods, these machines enable precise and minimally disruptive construction in a variety of ground conditions. As urbanization and infrastructure development continue to grow, the use of pipe jacking machines is likely to become even more widespread, providing a sustainable and costeffective alternative to traditional excavation methods.
