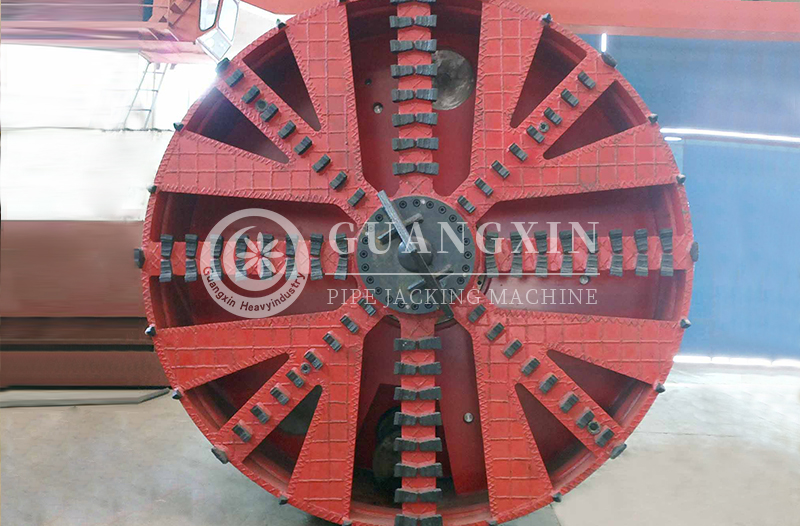

What is the difference between a pipe jacking machine and a tunnel boring machine (TBM)?

2026-05-26 09:29:22

Understanding the Differences Between Pipe Jacking Machines and Tunnel Boring Machines (TBMs)

In the realm of underground construction, two primary mechanized excavation methods dominate the landscape: pipe jacking machines and tunnel boring machines (TBMs). While both technologies serve the fundamental purpose of creating underground passages without extensive surface disruption, they differ significantly in their design, application, operational principles, and the scale of projects they serve. Understanding these distinctions is crucial for engineers, contractors, and project planners when selecting the most appropriate method for specific underground construction requirements.

Fundamental Definitions and Classifications

Tunnel boring machines, commonly known as TBMs, are sophisticated, large-scale equipment designed for excavating tunnels through various ground conditions. According to standard classifications, full-section tunnel boring machines include hard rock TBMs, shields for soft ground, and pipe jacking machines. In China, machines used for underwater and soft ground tunneling are traditionally called shields, while those used for rock formations are referred to as TBMs. TBMs are essentially mobile factories capable of performing excavation, muck removal, tunnel lining installation, and grouting in a continuous, integrated process.

Pipe jacking machines, on the other hand, are specialized equipment used for installing pipelines beneath existing infrastructure without open excavation. The pipe jacking method involves using mechanical or other means to excavate soil while pushing pipes segment by segment into the ground. This technique is particularly suited for creating small to medium-diameter tunnels for utilities, drainage systems, and service conduits.

Scale and Application Differences

One of the most significant distinctions between pipe jacking machines and TBMs lies in the scale and scope of projects they handle. TBMs are typically employed for large-diameter tunnels used in major infrastructure projects, including road tunnels, railway tunnels, metro systems, and large-scale water transfer projects. These machines can create tunnels spanning several kilometers in length with diameters ranging from a few meters to over 15 meters. The historical development of TBMs includes notable projects such as the Channel Tunnel between England and France, which helped establish the technology's reputation globally.

Pipe jacking machines, conversely, are predominantly used for smaller-diameter tunnels, typically ranging from 0.5 to 4 meters in diameter. These machines are ideal for installing utility pipelines, sewer systems, drainage conduits, and cable ducts beneath roads, railways, and other surface structures. The primary advantage of pipe jacking is its ability to minimize surface disruption while achieving high precision in alignment and grade, which is particularly critical for gravity-flow sewer systems.

Operational Principles and Key Differences

Excavation and Thrust Mechanisms

The operational principle of a TBM involves a rotating cutter head at the machine's front that excavates the ground material. Behind the cutter head, powerful thrust cylinders push against previously installed tunnel lining segments to advance the machine forward. The excavated material, known as "muck," is transported through the machine via conveyor systems and removed to the surface. A key feature of TBMs is that the thrust force does not theoretically increase with the tunneling distance, as the jacks push against the already installed lining rings.

In pipe jacking, the operational principle is fundamentally different. The machine excavates soil at the tunnel face while hydraulic jacks push the entire pipe string forward from a launch shaft. The pipes are jacked into the ground at the designed slope, and after one section is fully inserted, subsequent sections are added and pushed forward. Unlike TBMs, the jacking force in pipe jacking increases with the distance, as the friction between the pipes and surrounding soil accumulates along the entire pipeline length. This increasing resistance is a critical factor that must be carefully managed and predicted for successful pipe jacking operations.

Ground Support and Lining Systems

TBMs and pipe jacking machines employ different approaches to tunnel lining and ground support. TBMs typically use precast concrete segments that are assembled by an erector arm within the machine's shield to form a complete ring. These segments are bolted together and the annular gap between the segments and excavated ground is immediately filled with grout, creating a permanent, watertight tunnel structure.

Pipe jacking, by contrast, uses the pipes themselves as the permanent lining. The pipes, typically made of concrete, steel, or reinforced polymer, are jacked forward and become the finished tunnel lining. The jacking frame and thrust cylinders must be carefully aligned to ensure uniform pressure distribution and prevent pipe deviation. This approach eliminates the need for separate segment assembly, making the process simpler for smaller-diameter installations.

Guidance and Precision Control

Both technologies employ sophisticated guidance systems, but the precision requirements differ between applications. Modern rectangular pipe jacking machines utilize advanced laser guidance systems, gyroscopic sensors, and inertial measurement units to monitor and adjust trajectory in real-time. A laser target installed at the machine's front receives a beam from a fixed reference point, enabling operators to detect and correct deviations in horizontal and vertical alignment.

TBMs similarly use laser guidance and surveying instruments, but their precision requirements are often less stringent than those for pipe jacking, particularly in gravity-flow sewer applications where precise grade control is essential. The steering mechanisms in TBMs allow operators to adjust direction by controlling individual thrust cylinders, varying cutter head rotation speed, or using articulation joints.

Adaptability to Ground Conditions

The range of ground conditions suitable for each technology also differs. Pipe jacking machines are adaptable to various soil types, including soft soil, clay, sand, and even some hard ground conditions. Earth pressure balanced pipe jacking machines can handle both soft and hard soils, with minimum cover requirements as low as 1.5 times the pipe diameter. Soil conditioning through grouting can improve excavation characteristics and extend the application range.

TBMs, particularly those designed for hard rock, are specifically engineered for different geological conditions. The classification system for TBMs includes open-type (gripper) TBMs for stable hard rock, single-shield TBMs for fractured rock, double-shield TBMs that can operate in both stable and unstable conditions, and earth pressure balance or slurry shield TBMs for soft ground and high water pressure conditions. This diversity allows TBMs to tackle the most challenging geological conditions, from massive hard rock formations to water-bearing soft soils.

Economic and Efficiency Considerations

The economic characteristics of these two methods also diverge significantly. TBMs represent substantial capital investments, with machines typically custom-designed for specific tunnel diameters and geological conditions. The high initial cost is justified by the machine's ability to excavate long tunnels rapidly, with hard rock TBMs achieving advance rates 4 to 10 times faster than conventional drill-and-blast methods. Best daily advance rates can reach 150 meters under favorable conditions.

Pipe jacking machines, being smaller and less complex, generally involve lower initial investment. The method's economic efficiency is particularly evident for shorter-distance installations and smaller-diameter tunnels where the cost of a full-scale TBM would be prohibitive. The elimination of open-cut excavation also reduces costs associated with traffic disruption, surface restoration, and environmental mitigation.

In summary, pipe jacking machines and tunnel boring machines represent distinct approaches to underground construction, each optimized for different project requirements. Pipe jacking excels in smaller-diameter installations requiring high precision, particularly for utility lines and sewer systems beneath existing infrastructure. TBMs dominate large-diameter, long-distance tunneling projects for transportation, water transfer, and major infrastructure development. The choice between these technologies depends on factors including tunnel diameter and length, ground conditions, precision requirements, surface constraints, and economic considerations. As underground construction continues to expand in response to urban development and infrastructure needs, both technologies will continue to evolve, with innovations in automation, guidance systems, and ground conditioning further enhancing their capabilities and applications.
