How does a pipe jacking machine work in bridge construction?

2025-10-13 06:21:14

Pipe jacking is a trenchless construction method used to install pipelines, culverts, and tunnels beneath existing infrastructure, such as roads, railways, and rivers, without disrupting surface activities. In bridge construction, pipe jacking is often employed to create underpasses, drainage systems, or utility conduits. This method is particularly advantageous in urban areas or environmentally sensitive locations where traditional open-cut excavation is impractical. A pipe jacking machine (PJM) is the core equipment used in this process, and its operation involves a combination of mechanical, hydraulic, and engineering principles. This article explains how a pipe jacking machine works in bridge construction, detailing its components, operation, and advantages.

---

**Components of a Pipe Jacking Machine**

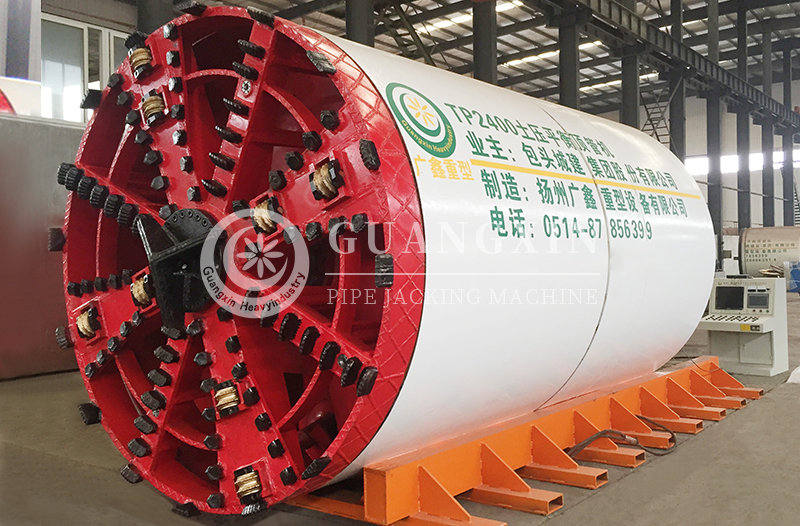

A pipe jacking machine consists of several key components that work together to facilitate the installation of pipes or culverts:

1. **Cutterhead**:

The cutterhead is the front-end component of the machine, responsible for excavating soil or rock at the face of the tunnel. It is equipped with cutting tools, such as disc cutters or picks, depending on the ground conditions. The cutterhead rotates to break down the material, which is then transported to the rear of the machine.

2. **Shield**:

The shield is a cylindrical structure that supports the excavated tunnel and prevents soil collapse. It provides a stable environment for the machine and workers during the jacking process.

3. **Hydraulic Jacks**:

Hydraulic jacks are the primary force-generating components of the machine. They push the machine and the trailing pipes forward through the ground. The jacks are mounted on a thrust wall or reaction frame, which provides the necessary resistance for the pushing force.

4. **Conveyor System**:

A conveyor or auger system removes excavated material from the cutterhead to the surface. This ensures continuous operation and prevents clogging at the face.

5. **Steering System**:

The steering system allows the operator to control the direction and alignment of the machine. It typically includes hydraulic cylinders that adjust the position of the cutterhead to maintain the desired trajectory.

6. **Trailing Pipes**:

These are the pipes or culverts being installed. They are pushed into the ground behind the machine as it advances. The pipes are usually made of reinforced concrete, steel, or other durable materials.

7. **Control Panel**:

The control panel is the operator’s interface for monitoring and controlling the machine’s functions, such as cutterhead rotation, jacking speed, and steering adjustments.

---

**How a Pipe Jacking Machine Works**

The pipe jacking process involves several stages, from setup to completion. Here’s a step-by-step overview of how a pipe jacking machine operates in bridge construction:

1. **Site Preparation**:

Before the machine is deployed, the construction site is prepared. This includes excavating a launch pit and a reception pit. The launch pit is where the machine is assembled and begins its journey, while the reception pit is the endpoint where the machine is retrieved. The pits are designed to provide adequate space for the machine and the pipes.

2. **Machine Assembly**:

The pipe jacking machine is lowered into the launch pit and assembled. The cutterhead, shield, hydraulic jacks, and other components are installed and tested to ensure proper functionality.

3. **Initial Jacking**:

Once the machine is ready, the hydraulic jacks are activated to push the machine into the ground. The cutterhead begins excavating the soil or rock, and the conveyor system removes the debris. The machine advances incrementally, with each stroke of the jacks pushing it forward by a few feet.

4. **Pipe Installation**:

As the machine moves forward, trailing pipes are added behind it. The pipes are carefully aligned and connected using precision equipment to ensure a smooth, continuous tunnel. The hydraulic jacks push both the machine and the pipes, gradually extending the tunnel.

5. **Steering and Alignment**:

Throughout the process, the operator monitors the machine’s alignment using laser guidance systems or other surveying tools. The steering system is adjusted as needed to maintain the correct trajectory and avoid deviations.

6. **Completion and Retrieval**:

When the machine reaches the reception pit, the jacking process is complete. The machine is disassembled and removed from the pit, leaving behind a fully installed pipeline or culvert.

---

**Advantages of Pipe Jacking in Bridge Construction**

Pipe jacking offers several benefits in bridge construction, making it a preferred method in many scenarios:

1. **Minimal Surface Disruption**:

Since pipe jacking is a trenchless method, it eliminates the need for extensive excavation. This minimizes disruption to traffic, nearby structures, and the environment.

2. **Precision and Accuracy**:

The use of advanced guidance systems ensures precise alignment and reduces the risk of errors. This is particularly important in bridge construction, where accuracy is critical for structural integrity.

3. **Versatility**:

Pipe jacking can be used in a wide range of ground conditions, from soft soils to hard rock. The cutterhead and other components can be customized to suit specific project requirements.

4. **Safety**:

The enclosed nature of the process reduces the risk of accidents and provides a safer working environment for construction crews.

5. **Cost-Effectiveness**:

Although the initial setup costs may be higher than traditional methods, pipe jacking can save time and money in the long run by reducing surface restoration and traffic management expenses.

6. **Environmental Benefits**:

By minimizing excavation and surface disturbance, pipe jacking reduces the environmental impact of construction projects. It also helps preserve natural habitats and reduces noise pollution.

---

**Challenges and Considerations**

Despite its advantages, pipe jacking also presents some challenges that must be addressed:

1. **Ground Conditions**:

Unexpected ground conditions, such as boulders or water ingress, can complicate the process. Proper site investigation and soil analysis are essential to mitigate these risks.

2. **Machine Maintenance**:

The cutterhead and other components are subject to wear and tear, especially in abrasive ground conditions. Regular maintenance is required to ensure smooth operation.

3. **Cost and Complexity**:

The equipment and technology used in pipe jacking are expensive and require skilled operators. This can increase the overall project cost.

4. **Limited Length**:

Pipe jacking is typically used for shorter distances (up to a few hundred meters). For longer tunnels, other methods, such as tunnel boring machines (TBMs), may be more suitable.

---

**Conclusion**

Pipe jacking is a highly effective and versatile method for installing pipelines and culverts in bridge construction. By combining advanced technology with precise engineering, pipe jacking machines can create underground passages with minimal disruption to the surface. This makes them ideal for urban areas, environmentally sensitive locations, and projects where traditional excavation methods are impractical. While the process requires careful planning and skilled execution, its benefits in terms of safety, accuracy, and environmental impact make it a valuable tool in modern bridge construction. As infrastructure demands continue to grow, pipe jacking is likely to play an increasingly important role in shaping the future of construction.
