Pipe jacking is a trenchless construction method used to install pipelines, culverts, and tunnels with minimal surface disruption. It has gained popularity in urban areas where traditional open-cut methods are impractical or disruptive. To understand how pipe jacking machines compare to traditional methods, it is essential to examine the principles, advantages, and limitations of each approach.

**Traditional Methods: Open-Cut Excavation**

Traditional pipeline installation typically involves open-cut excavation, where a trench is dug along the pipeline route, and the pipe is laid into the trench. This method has been widely used for decades due to its simplicity and cost-effectiveness in certain scenarios. However, it comes with several challenges, particularly in urban or environmentally sensitive areas.

**Advantages of Open-Cut Excavation**

1. **Simplicity**: Open-cut excavation is straightforward and does not require specialized equipment beyond excavators and backhoes.

2. **Cost-Effective for Short Distances**: For short pipeline installations in rural or undeveloped areas, open-cut methods are often more economical.

3. **Versatility**: This method can accommodate a wide range of pipe materials, including concrete, steel, and plastic.

4. **Ease of Inspection and Repair**: Since the pipeline is exposed during installation, it is easier to inspect and repair if necessary.

**Disadvantages of Open-Cut Excavation**

1. **Surface Disruption**: Open-cut excavation requires significant surface disruption, which can be problematic in urban areas with heavy traffic, buildings, or utilities.

2. **Environmental Impact**: The method can damage vegetation, disrupt ecosystems, and increase soil erosion.

3. **Traffic and Community Disruption**: In cities, open-cut excavation often leads to road closures, traffic congestion, and noise pollution, affecting businesses and residents.

4. **Limited Depth**: Open-cut methods are less practical for deep installations due to the increased cost and complexity of excavation.

5. **Safety Risks**: Trenches can pose safety hazards to workers, including the risk of collapse.

**Pipe Jacking: A Trenchless Alternative**

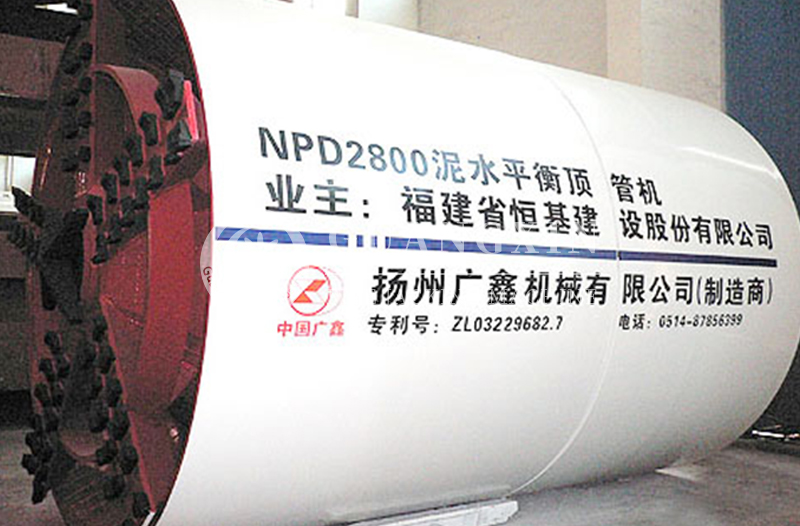

Pipe jacking is a trenchless technology that involves pushing prefabricated pipe sections through the ground using a hydraulic jacking system. A pipe jacking machine, often equipped with a micro-tunnel boring machine (MTBM), excavates the soil at the front while simultaneously installing the pipe behind it. This method is particularly suitable for installing pipelines under obstacles like roads, railways, or buildings.

**Advantages of Pipe Jacking**

1. **Minimal Surface Disruption**: Pipe jacking requires only small entry and exit pits, making it ideal for urban areas where surface disruption must be minimized.

2. **Deep Installations**: This method is well-suited for deep pipeline installations, as it does not require extensive excavation.

3. **Environmental Benefits**: Pipe jacking reduces the impact on vegetation, ecosystems, and soil stability compared to open-cut methods.

4. **Reduced Traffic and Community Impact**: Since the surface remains largely undisturbed, pipe jacking minimizes traffic disruptions and noise pollution.

5. **Versatility in Soil Conditions**: Pipe jacking machines can handle a variety of soil types, including clay, sand, and rock, with the appropriate cutting tools.

6. **Improved Safety**: Workers are not exposed to the risks associated with trench collapses or heavy machinery in open-cut excavation.

**Disadvantages of Pipe Jacking**

1. **Higher Initial Cost**: The specialized equipment and expertise required for pipe jacking make it more expensive than open-cut methods for short distances.

2. **Complexity**: Pipe jacking requires precise planning, including geotechnical investigations and alignment control, which can increase project complexity.

3. **Limited Pipe Materials**: Pipe jacking typically uses reinforced concrete or steel pipes, which may not be suitable for all applications.

4. **Length Limitations**: While pipe jacking is effective for medium to long distances, extremely long installations may require intermediate jacking stations, increasing costs and complexity.

5. **Maintenance Challenges**: Repairing or maintaining pipelines installed via pipe jacking can be more difficult due to their depth and lack of access points.

**Comparison of Pipe Jacking and Traditional Methods**

1. **Surface Disruption**

- **Pipe Jacking**: Minimal surface disruption, making it ideal for urban areas and environmentally sensitive locations.

- **Open-Cut Excavation**: Significant surface disruption, leading to traffic congestion, environmental damage, and community inconvenience.

2. **Cost**

- **Pipe Jacking**: Higher initial costs due to specialized equipment and expertise, but cost-effective for long or deep installations.

- **Open-Cut Excavation**: Lower initial costs for short distances but can become expensive in urban areas due to restoration and compensation costs.

3. **Depth and Length**

- **Pipe Jacking**: Suitable for deep and medium to long-distance installations.

- **Open-Cut Excavation**: Limited to shallow depths and short to medium distances.

4. **Environmental Impact**

- **Pipe Jacking**: Reduced environmental impact, preserving vegetation and ecosystems.

- **Open-Cut Excavation**: Higher environmental impact, including soil erosion and habitat disruption.

5. **Safety**

- **Pipe Jacking**: Improved safety for workers, with reduced risks of trench collapses and machinery accidents.

- **Open-Cut Excavation**: Higher safety risks due to trenching and heavy machinery operations.

6. **Flexibility**

- **Pipe Jacking**: Limited to specific pipe materials and requires precise planning.

- **Open-Cut Excavation**: More flexible in terms of pipe materials and easier to adapt to changing site conditions.

**Conclusion**

Pipe jacking machines offer a modern, efficient, and environmentally friendly alternative to traditional open-cut excavation methods. While they come with higher initial costs and require specialized expertise, their ability to minimize surface disruption, handle deep installations, and reduce environmental impact makes them invaluable in urban and sensitive environments. On the other hand, open-cut excavation remains a viable option for short, shallow installations in less congested areas where cost and simplicity are prioritized.

The choice between pipe jacking and traditional methods ultimately depends on project-specific factors, including the installation depth, length, location, and budget. As urbanization and environmental concerns continue to grow, pipe jacking is likely to play an increasingly important role in pipeline construction, offering a sustainable and efficient solution for modern infrastructure challenges.
