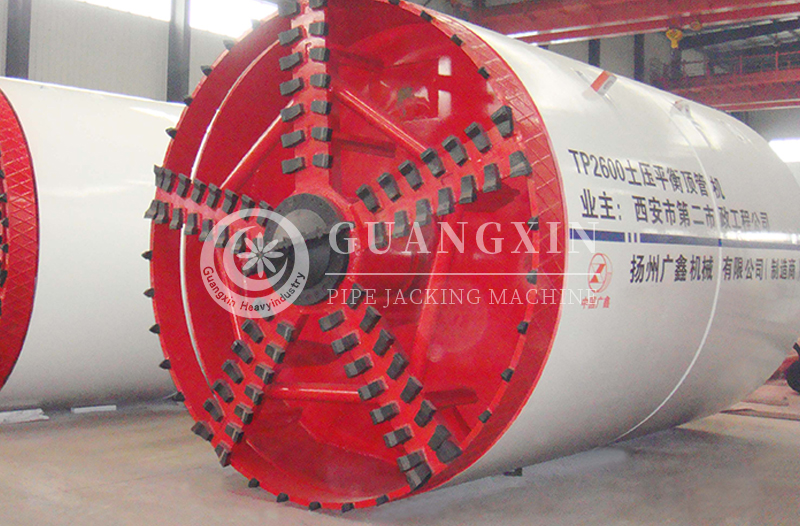

**How Does a Pipe Jacking Machine Ensure Precision in Tunneling?**

Pipe jacking is a trenchless construction method used to install pipelines, conduits, and tunnels with minimal surface disruption. It is widely employed in urban areas where open-cut excavation is impractical or disruptive. Precision in tunneling is critical to ensure the pipeline is installed accurately along the designed alignment, avoiding deviations that could lead to structural failures, environmental damage, or increased costs. Pipe jacking machines are engineered to achieve this precision through advanced technology, robust design, and meticulous operational processes. This article explores the mechanisms and strategies that enable pipe jacking machines to ensure precision in tunneling.

---

1. **Laser Guidance and Surveying Systems**

One of the primary tools for ensuring precision in pipe jacking is the integration of laser guidance and surveying systems. These systems provide real-time feedback on the machine's position, orientation, and alignment relative to the designed tunnel path.

- **Laser Target System**: A laser emitter is installed at the tunnel entrance or a designated control point. The laser beam is directed toward a target mounted on the pipe jacking machine. Sensors on the target detect the laser's position, allowing the operator to monitor the machine's alignment.

- **Gyroscopic and Inertial Navigation Systems**: Advanced pipe jacking machines may also incorporate gyroscopic or inertial navigation systems to track the machine's position and orientation in three-dimensional space. These systems are particularly useful in long tunnels or complex alignments where laser guidance alone may be insufficient.

- **Continuous Monitoring**: The data from these systems is continuously fed to the operator or an automated control system, enabling immediate adjustments to the machine's trajectory if deviations are detected.

---

2. **Steering and Control Mechanisms**

Pipe jacking machines are equipped with sophisticated steering and control mechanisms that allow for precise adjustments during tunneling. These mechanisms ensure that the machine follows the intended alignment, even in challenging ground conditions.

- **Hydraulic Jacks**: The machine is propelled forward by hydraulic jacks that push against the installed pipe segments. These jacks can be individually controlled to adjust the machine's direction. By varying the pressure on specific jacks, the operator can steer the machine left, right, up, or down.

- **Steering Head**: The cutting head of the pipe jacking machine is often designed to be adjustable. It can tilt or rotate slightly to correct the machine's trajectory. Some machines also feature articulated steering heads that allow for sharper turns.

- **Automated Control Systems**: Modern pipe jacking machines often use automated control systems that integrate data from laser guidance, surveying, and ground conditions to make real-time adjustments. This reduces the reliance on manual intervention and enhances precision.

---

3. **Ground Condition Monitoring and Adaptation**

Ground conditions play a significant role in the precision of tunneling. Pipe jacking machines are equipped with systems to monitor and adapt to varying ground conditions, ensuring consistent performance.

- **Soil Pressure Sensors**: Sensors on the cutting head measure the pressure and composition of the soil or rock being excavated. This information helps the operator adjust the machine's speed, cutting force, and steering to maintain alignment.

- **Ground Stabilization**: In unstable or loose ground, pipe jacking machines may use techniques such as grouting or soil conditioning to stabilize the excavation face. This prevents ground collapse and ensures the machine remains on course.

- **Shield Design**: The machine's shield is designed to minimize ground disturbance and maintain stability during excavation. Advanced shields may include features like articulated segments or expandable cutters to adapt to different ground conditions.

---

4. **Pipe Segment Alignment**

Precision in pipe jacking also depends on the accurate installation of pipe segments. Each segment must be aligned correctly to ensure the overall tunnel follows the designed path.

- **Precision Manufacturing**: Pipe segments are manufactured to exact specifications, with tight tolerances for dimensions and alignment features. This ensures that each segment fits seamlessly with the next.

- **Joint Design**: The joints between pipe segments are designed to maintain alignment and prevent deviations. Some systems use interlocking joints or alignment pins to ensure precision.

- **Installation Process**: During installation, each pipe segment is carefully positioned and aligned using hydraulic jacks or other positioning systems. The alignment is verified using laser guidance or surveying tools before the next segment is installed.

---

5. **Quality Control and Verification**

Throughout the tunneling process, quality control measures are implemented to verify precision and address any deviations.

- **Surveying Checks**: Regular surveying checks are conducted to confirm the machine's position and alignment. These checks may involve traditional surveying methods or advanced techniques like GPS or LiDAR.

- **Data Logging**: Modern pipe jacking machines often include data logging systems that record all relevant parameters, including alignment, steering adjustments, and ground conditions. This data can be analyzed to identify trends or issues and ensure compliance with design specifications.

- **Post-Installation Inspection**: After the tunneling is complete, the installed pipeline is inspected to verify its alignment and integrity. Techniques such as CCTV inspection or laser scanning may be used for this purpose.

---

6. **Operator Expertise and Training**

While technology plays a crucial role in ensuring precision, the expertise of the operator is equally important. Skilled operators can interpret data, make informed decisions, and respond effectively to challenges.

- **Training Programs**: Operators undergo extensive training to understand the operation of pipe jacking machines, the principles of tunneling, and the use of guidance and control systems.

- **Experience**: Experienced operators can anticipate potential issues and take proactive measures to maintain precision. They are also adept at interpreting ground conditions and adjusting the machine's operation accordingly.

- **Team Coordination**: Precision in tunneling requires close coordination between the operator, surveyors, engineers, and other team members. Effective communication and collaboration ensure that all aspects of the project are aligned with the design.

---

7. **Advanced Technologies and Innovations**

The precision of pipe jacking machines continues to improve with advancements in technology and innovation.

- **Robotic Systems**: Some machines incorporate robotic systems for automated excavation and steering, reducing the potential for human error.

- **Artificial Intelligence (AI)**: AI algorithms can analyze data from multiple sources to optimize the machine's performance and predict potential deviations.

- **Remote Monitoring**: Remote monitoring systems allow engineers and project managers to oversee the tunneling process in real-time, providing additional oversight and support.

---

Conclusion

Precision in tunneling is essential for the success of pipe jacking projects, and pipe jacking machines are designed to achieve this precision through a combination of advanced technology, robust engineering, and skilled operation. Laser guidance and surveying systems, sophisticated steering mechanisms, ground condition monitoring, and quality control measures all contribute to ensuring that the tunnel follows the designed alignment. As technology continues to evolve, pipe jacking machines are becoming even more precise, efficient, and adaptable, making them an indispensable tool in modern tunneling and pipeline installation.
